Jandy

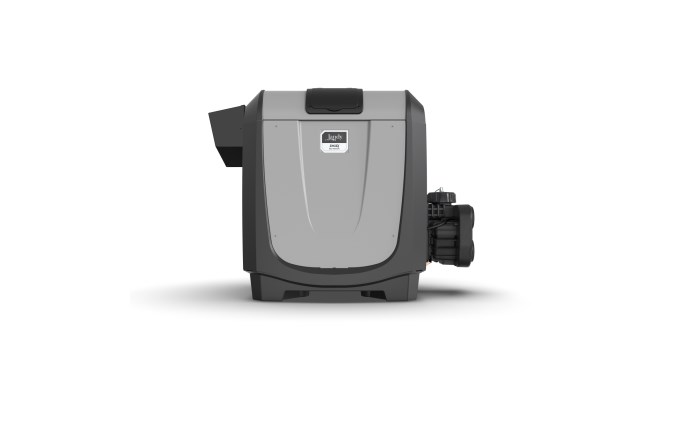

JXIQ Liquid Porpane Pool Heater CuNi Hx Versaflo with Poly Header 399K BTUH 240V

Product #:LAR-15-1001

Mfg. Part #:JXIQ400PNK


Jandy JXIQ JXIQ400PNK Liquid Porpane Pool Heater CuNi Hx Versaflo with Poly Header 399K BTUH 240V

Jandy

JXIQ Liquid Porpane Pool Heater CuNi Hx Versaflo with Poly Header 399K BTUH 240V

Product #:LAR-15-1001

Mfg. Part #:JXIQ400PNK

EA

Description

The JXiQ is designed with features to ensure proper installation and operation such as auto-sensing dual voltage functionality and a one-of-a-kind low gas pressure switch to prevent ignition when it doesn’t sense enough pressure. Engineered with additional sensors for unparalleled self-diagnostic capabilities, troubleshooting service calls is a cinch since you can detect and resolve issues quickly — allowing you to complete more calls in a day. Part of the JXi lineup that’s known for its compact size and durable construction that protects against rodents, the JXiQ further enhances longevity with a sacrificial anode that draws corrosive materials in the water away from susceptible parts and equipment. For pool owners’ convenience, this next generation heater can calculate heat up time and provides at-a-glance status updates on a large display or in the iAquaLink® app.

Feature Bullets

  • Estimates heat up time: Calculates and displays how long it will take water to reach desired temperature setpoint
  • Heat when you want. Save energy
 when you don’t: Innovative VersaFlo Integrated Bypass technology* automatically directs water through the heat exchanger only when heat is needed
  • Largest Display in the Industry: Digital display is 50% larger than before and capable of showing 80 characters
  • Low Gas Pressure Sensor: Ensures there’s enough gas pressure to safely ignite
  • Optimize Flow: Measures temperature rise between the inlet and outlet to optimize flow and avoid heat exchanger failures
  • Auto-Sensing Power Input: Automatically adjusts to supplied power when installed, no cards to flip and no wires to change
  • Superior Corrosion Defense: A sacrificial anode draws corrosive elements in the water away from susceptible parts and equipment *Not included on JXiQ ASME models
  • 5-Year Heat Exchanger Limited Warranty: Industry leading 5-Year standard limited warranty on the heat exchanger* *5-year warranty applies to non ASME compliant models with VersaFlo Integrated Bypass only
  • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • Amperage2.5 amperage
    • Shipping Dimensions39.8 x 23.3 x 28.5 inch
    • ApplicationPool
    • BTU Input399 British thermal unit
    • Cabinet Depth22.1 inch
    • Cabinet Height26.5 inch
    • Cabinet Width22.9 inch
    • ChannelNone
    • ColorGray, Black
    • Commercial, Residential, or ProfessionalProfessional
    • Each Product Weight126 pound
    • Flow Rate Max100 gal/min
    • Flow Rate Min30 gal/min
    • Fuel TypePropane
    • Gas Connection0.75 inch
    • Gas Connection FITNPT
    • Heat Exchanger MaterialCupro Nickel
    • Heater ColorGray, Black
    • Ignition TypeElectronic
    • Minimum Sell Quantity1
    • Thermal Efficiency80
    • Voltage240V
    • Warranty - General5 years
    • Water Connection 12 inch
    • Electrical Input240 volt
    • UPC Code052337330220

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    R0592400
    LAR-151-3239
    Product #: LAR-151-3239
    Mfg #: R0592400
    Notes:

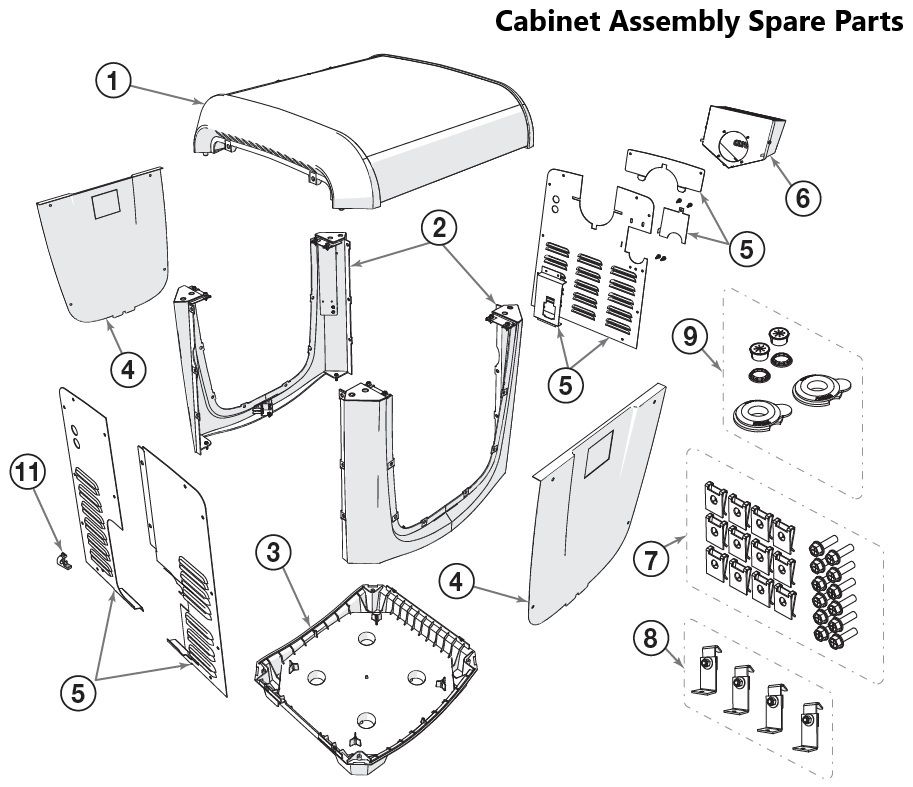

    Cabinet Assembly Spare Parts, No User Interface
    2
    2
    R0592500
    LAR-151-3256
    Product #: LAR-151-3256
    Mfg #: R0592500
    Notes:
    Cabinet Assembly Spare Parts, Set of 2
    3
    3
    R0592600
    LAR-151-3257
    Product #: LAR-151-3257
    Mfg #: R0592600
    Notes:
    Cabinet Assembly Spare Parts
    4
    4
    R0592700
    LAR-151-3258
    Product #: LAR-151-3258
    Mfg #: R0592700
    Notes:
    Cabinet Assembly Spare Parts
    5
    5
    R0592900
    LAR-151-3259
    Product #: LAR-151-3259
    Mfg #: R0592900
    Notes:
    Cabinet Assembly Spare Part, Includes: Exhaust side panel, top panel closure, anti rotation bracket and access door. Header side panel LH, Header side panel RH.
    6
    6
    R0593100
    LAR-151-3200
    Product #: LAR-151-3200
    Mfg #: R0593100
    Notes:
    Cabinet Assembly Spare Parts
    7
    7
    R0593300
    LAR-151-3260
    Product #: LAR-151-3260
    Mfg #: R0593300
    Notes:
    Cabinet Assembly Spare Parts
    8
    8
    R0593400
    LAR-151-3203
    Product #: LAR-151-3203
    Mfg #: R0593400
    Notes:
    Cabinet Assembly Spare Parts, Set of 4
    9
    9
    R0591800
    LAR-151-0606
    Product #: LAR-151-0606
    Mfg #: R0591800
    Notes:
    Cabinet Assembly Spare Parts
    10
    10
    R0593600
    Complete Replacement Box Packaging Kit
    Product #:
    Mfg #: R0593600
    Notes:
    Cabinet Assembly Spare Parts, Not Shown
    11
    11
    R0852800
    Bonding Lug
    Product #:
    Mfg #: R0852800
    Notes:
    Cabinet Assembly Spare Parts
    1
    1
    R0590200
    LAR-151-3235
    Product #: LAR-151-3235
    Mfg #: R0590200
    Notes:
    Heat System Spare Parts
    2
    2
    R0590400
    LAR-151-3238
    Product #: LAR-151-3238
    Mfg #: R0590400
    Notes:
    Heat System Spare Parts
    3
    3
    R0590500
    LAR-151-3261
    Product #: LAR-151-3261
    Mfg #: R0590500
    Notes:
    Heat System Spare Parts
    5
    5
    R0590800
    LAR-151-3234
    Product #: LAR-151-3234
    Mfg #: R0590800
    Notes:
    Heat System Spare Parts
