Waterway

48 SqFt Crystal Water D.E Filter

Product #:WWP-05-4087

Mfg. Part #:570-0048-07

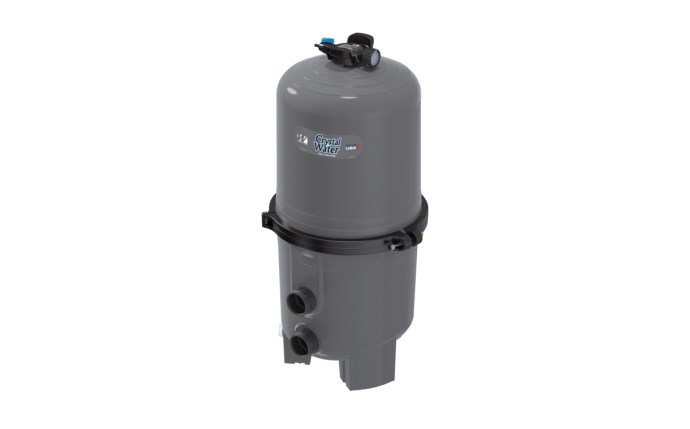

Waterway Crystal Water 570-0048-07 48 SqFt D.E Filter 96 GPM

Waterway

48 SqFt Crystal Water D.E Filter

Product #:WWP-05-4087

Mfg. Part #:570-0048-07

EA

Description

Waterway 570-0048-07 Crystal Water D.E. Filter 48 SqFt 96 GPM. Designed for today's most demanding installations, the Crystal Water D.E. Filter sets the standard of performance and features for pool filters. The only D.E. filter on the market with 2 1/2" internal piping, improves flow and reduces system noise when using 2 1/2"or 2" plumbing. With the 2" bottom clean out port, the Crystal Water D.E. Filter will provide years of trouble-free operation and crystal clear, sparkling water.

Feature Bullets

  • Fiberglass reinforced polypropylene body for superior strength
  • "Multi-Handle" design
  • Heavy duty tamper-proof clamp
  • Industry-proven D.E. grids
  • "Start-Service" dial on stainless steel pressure gauge
  • 1-1/2 Inch bottom clean out port
  • 2-1/2 Inch high-temperature PVC slide valve
  • 2-1/2 Inch x 2 Inch multi-port valve
  • 2-1/2 Inch internal piping
  • Convertible to cartridge by simply changing internals
  • Branch Availability

    content loaded

    Specifications

    • BrandWaterway
    • ApplicationPool
    • Shipping Dimensions44.5 x 23 x 25.25 inch
    • ChannelNone
    • Commercial, Residential, or ProfessionalResidential
    • Design Flow Rate96 gal/min
    • Each Product Weight79 pound
    • Filter Control ValveMulti-Port Valve
    • Filtration Area48 square feet
    • Master Carton Quantity1
    • MaterialFiberglass, Polypropylene or polypropene
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Warranty - General2 years
    • UPC Code806105312990

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    550-4230
    WWP-051-4230
    Pressure Relief Valve Assembly
    Product #: WWP-051-4230
    Mfg #: 550-4230
    1
    1
    550-6730
    WWP-25-1003
    Product #: WWP-25-1003
    Mfg #: 550-6730
    1a
    1a
    602-4211
    Service Bezel
    Product #:
    Mfg #: 602-4211
    1b
    1b
    830-4200
    Pressure Gauge
    Product #:
    Mfg #: 830-4200
    1c
    1c
    711-1670
    Rubber Boot For Pressure Gauge
    Product #:
    Mfg #: 711-1670
    1d
    1d
    519-4281
    WWP-051-0003
    Pressure Relief Body
    Product #: WWP-051-0003
    Mfg #: 519-4281
    1e
    1e
    805-0110
    WWP-85-9749
    O-Ring
    Product #: WWP-85-9749
    Mfg #: 805-0110
    1e
    1e
    57006500
    AMP-051-8018
    0.362" ID #0-155 Buna-N Maxim Pump and Drain Plug O-Ring
    Product #: AMP-051-8018
    Mfg #: 57006500
    1e
    1e
    SPX1082Z410
    HAY-051-1922
    Product #: HAY-051-1922
    Mfg #: SPX1082Z410
    1e
    1e
    O-155-9
    SPG-601-1285
    Product #: SPG-601-1285
    Mfg #: O-155-9
    1f
    1f
    550-4240
    WWP-051-4240
    Pressure Relief Screw with O-Ring
    Product #: WWP-051-4240
    Mfg #: 550-4240
    1g
    1g
    602-4201
    Handle - Pressure Relief Valve
    Product #:
    Mfg #: 602-4201
    1h
    1h
    805-0233
    O-Ring
    Product #:
    Mfg #: 805-0233
    1i
    1i
    827-8150
    Filter Internal Spring
    Product #:
    Mfg #: 827-8150
    1j
    1j
    519-4370
    Plunger
    Product #:
    Mfg #: 519-4370

    Wholegoods

    There are no wholegoods available.
