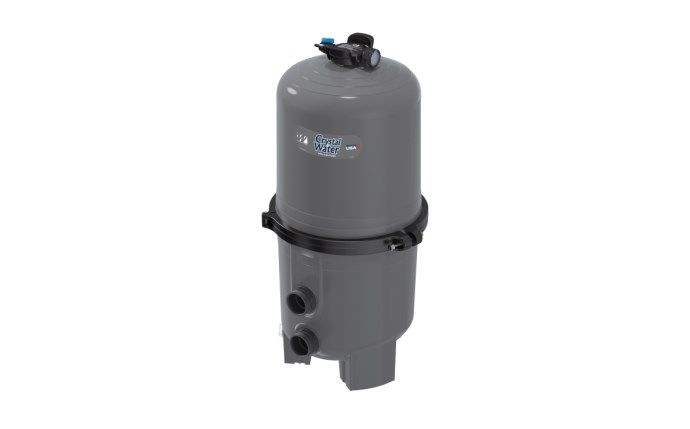

Waterway Crystal Water 570-0425-07 425 SqFt Cartridge Filter 150 gpm
Description
Waterway Crystal Water 570-0425-07 425 SqFt Cartridge Filter 150 gpm. Combining high tech features and an easy to service design, the Crystal Water Cartridge Filter is ideal for new and replacement installations. The only cartridge filter on the market with 2 1/2" internal piping, improves flow and reduces system noise when using 2 1/2", 2" or 1 1/2" plumbing. Using four cartridge elements, the Crystal Water Cartridge Filter offers a superior choice for easy maintenance and crystal clear, clean water.
Documents
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationInground, Pool
- Shipping Dimensions23 x 23 x 38 inch
- Design Flow Rate150 gal/min
- Each Product Weight74 pound
- Filtration Area425 square feet
- Inlet/Outlet Sizes1.5 inch
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- Pipe Size2.5 inch
- Plumbing Size2.5 inch
- Product Weight74 pound
- Turnover 6hrs54000 gallon
- Turnover 8hrs72000 gallon
- UPC Code806105312969
Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
550-4230
WWP-051-4230
Pressure Relief Valve Assembly
Product #: WWP-051-4230
Mfg #: 550-4230
1a
1a
602-4211
Service Bezel
Product #:
Mfg #: 602-4211
1b
1b
830-4200
Pressure Gauge
Product #:
Mfg #: 830-4200
1c
1c
711-1670
Rubber Boot For Pressure Gauge
Product #:
Mfg #: 711-1670
1d
1d
519-4281
WWP-051-0003
Pressure Relief Body
Product #: WWP-051-0003
Mfg #: 519-4281
1e
1e
805-0110
O-Ring
Product #:
Mfg #: 805-0110
1f
1g
1g
602-4201
Handle - Pressure Relief Valve
Product #:
Mfg #: 602-4201
1h
1h
805-0233
O-Ring (2)
Product #:
Mfg #: 805-0233
1i
1i
827-8150
Filter Internal Spring
Product #:
Mfg #: 827-8150
1j
1j
519-4370
Plunger
Product #:
Mfg #: 519-4370
1k
1k
718-4200
Valve Nut
Product #:
Mfg #: 718-4200
2
2
550-4470
425 sq. ft. Filter Lid with Cartridge Crystal Water Filter Labels
Product #:
Mfg #: 550-4470
3
3
550-4260
Metal Clamp with Clamp Spring Assembly
Product #:
Mfg #: 550-4260
4
4
550-4250
WWP-051-4250
Clamp Spring Assembly and Wrench
Product #: WWP-051-4250
Mfg #: 550-4250
