- This product is obsolete.
- The superceded product was not found.

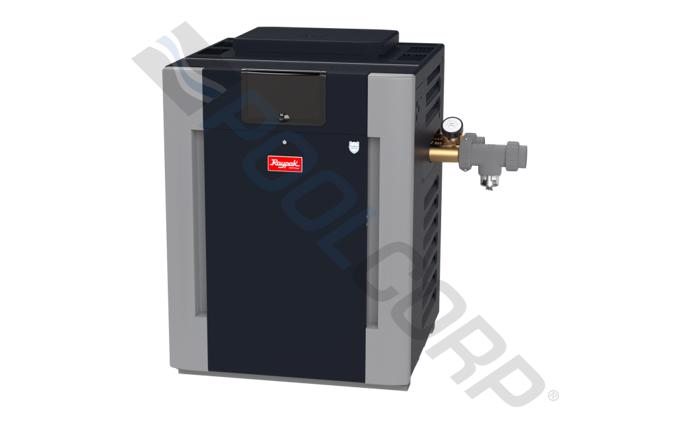

Raypak 014951 266A Liquid Propane Digital Electric Heater 266K BTU
Description
Raypak 014951 266A Liquid Propane Digital Electric Heater 266K BTU. Raypak Liquid Propane Digital Heater 266K BTU is built to last. This heater is the perfect choice for large above ground pools, spas and smaller inground pools, and features a micro-processor controlled thermostat that allows you to set your pool to your desire desired temperature all year round. It also comes equipped with an on board diagnostic control system that allows you to track the health of your heater. It also features an integral-fin design that allows maximum heat transfer to be attained and maintained.
Branch Availability
content loaded
Specifications
- BrandRaypak
- ApplicationPool, Spa
- BTU Input266 British thermal unit
- Cabinet Height38 inch
- Cabinet Width23 inch
- Each Product Weight0 pound
- Flow Rate Max100 gal/min
- Flow Rate Min20 gal/min
- Fuel TypePropane
- Gas Connection0.75 inch
- Gas Connection FITNPT
- Header MaterialPolymer
- Heat Exchanger MaterialCupro Nickel
- Heater ColorDark Gray
- Housing FinishPowder Coated
- Ignition TypeElectronic
- IncludesPagoda top, 2" CPVC union half with "O" rings (2), Plastic pipe finish flange for gas line, Bonding lug with mounting screw (Digital) models only)
- Master Carton Quantity1
- Minimum J11 inch
- Minimum Sell Quantity1
- Pallet Quantity1
- Product Height38 inch
- Product Weight187 pound
- Product Width23 inch
- Standards ApprovalsCSA Certified, ANSI Certified
- Voltage120V, 240V
- Water Connection 12
- Water Connection 22 inch
- Maximum Circuit Breaker4 amperage
- Min Circuit Ampacity2 amperage
- Water Connection 1 FITSlip
- Water Connection 2 FITSlip
Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
010392F
RAY-151-9826
Product #: RAY-151-9826
Mfg #: 010392F
1-B
1-B
010400F
RAY-151-8771
ASME HX (Cu or Cupro)Burner Tray w/Gas Valve Nat Millivolt (sea level)
Product #: RAY-151-8771
Mfg #: 010400F
1-B
1-B
010408F
RAY-151-8770
Product #: RAY-151-8770
Mfg #: 010408F
1-B
1-B
019207F
Polymer Cu HX Burner Tray w/Burners Pro (sea level)
Product #:
Mfg #: 019207F
1-B
1-B
010404F
RAY-151-8772
ASME HX (Cu or Cupro) Burner Tray w/Gas Valve Pro Millivolt (sea level)
Product #: RAY-151-8772
Mfg #: 010404F
1-B
1-B
010412F
RAY-151-1561
Product #: RAY-151-1561
Mfg #: 010412F
1-B
1-B
019211F
Polymer Cupro HX NAT #51 ORIFICE Burner Tray w/Burners Nat (sea level)
Product #:
Mfg #: 019211F
1-B
1-B
019215F
Polymer Cupro HX NAT #51 ORIFICE Burner Tray w/Gas Valve Nat Millivolt (sea level)
Product #:
Mfg #: 019215F
1-B
1-B
019219F
Polymer Cupro HX NAT #51 ORIFICE Burner Tray w/Gas Valve Nat IID (sea level)
Product #:
Mfg #: 019219F
1-B
1-B
019223F
Polymer Cupro HX PRO #58 ORIFICE Burner Tray w/Burners Pro (sea level) Burner Tray w/Gas
Product #:
Mfg #: 019223F
1-B
1-B
019227F
Polymer Cupro HX PRO #58 ORIFICE Burner Tray w/Burners Pro (sea level) Burner Tray w/Gas
Product #:
Mfg #: 019227F
1-B
1-B
019231F
Polymer Cupro HX PRO #58 ORIFICE Burner Tray w/Gas Valve Pro IID (sea level)
Product #:
Mfg #: 019231F
2-B
2-B
010416F
RAY-151-8038
Burner Spacer/Hold Down Kit
Product #: RAY-151-8038
Mfg #: 010416F
2-B
2-B
301210/18
Burner
Product #:
Mfg #: 301210/18
4-B
4-B
350079F/18
Burner Orifice #50 (0-1999 ft elevation)
Product #:
Mfg #: 350079F/18
Wholegoods
There are no wholegoods available.
