Max XGT Brushless Cordless 3-Speed 1/2" Hammer Driver Drill 40V Tool Only

Product #:MAK-67-1362

Mfg. Part #:GPH03Z


Makita GPH03Z Max XGT Brushless Cordless 3-Speed 1/2" Hammer Driver Drill 40V Tool Only

Makita

Max XGT Brushless Cordless 3-Speed 1/2" Hammer Driver Drill 40V Tool Only

Product #:MAK-67-1362

Mfg. Part #:GPH03Z

EA

Description

The Makita 40V max XGT® 3-Speed 1/2" Hammer Driver-Drill (GPH03) is Makita’s most powerful Hammer Driver Drill delivering 1,590 in. lbs. of max torque with a three-speed transmission. The GPH03 breaks new ground for the most demanding drilling and driving applications in wood, masonry and metal. The hammer-drill mode applies a percussive motion for drilling holes in concrete or masonry.

Documents

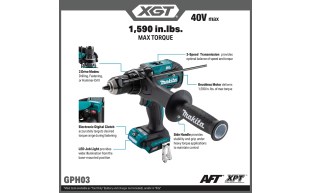

Feature Bullets

  • Outpower: Makita's most powerful Hammer Driver-Drill delivers 1,590 in.lbs. of Max Torque with a brushless motor
  • Outsmart: 3-Speed Transmission provides optimal balance of speed and torque for maximum efficiency
  • Outlast: Twice the working speed without overloading batteries in Medium Speed*
  • Active Feedback-sensing Technology (AFT®) turns the motor off if rotation of the accessory is suddenly forced to stop
  • Faster drilling speeds with 3 speed settings (0-650 / 0-1,800 / 0-2,400 RPM) (0-9,750 / 0-27,000 / 0-36,000 IPM)

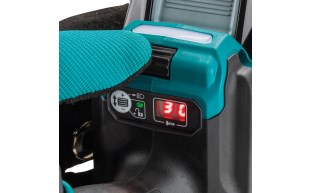

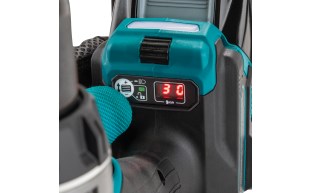

  • Electronic digital clutch accurately targets desired torque range during fastening (41 settings in low speed, 30 settings in medium, 21 settings in high)
  • Ultra-smooth variable trigger provides optimum speed control
  • XPT™ is engineered to provide increased dust and water resistance in harsh job site conditions
  • LED job light provides wider illumination from the base-mounted position
  • Hammer-drill mode applies a percussive motion for drilling holes in concrete or masonry

    • Branch Availability

    content loaded

    Specifications

    • BrandMakita
    • ApplicationOutdoor
    • Shipping Dimensions5.16 x 12.6 x 8.7 inch
    • ChannelNone
    • ColorBlack, Teal
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight5.64 pound

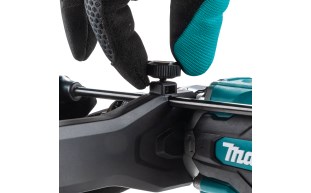

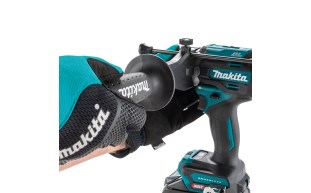

    • Includes(1) Side Handle, GPH03 (122J20-5)
    • Minimum Sell Quantity1
    • Pallet Quantity4
    • Warranty - General3 years
    • Chuck Size1/2
    • Maximum Torque1590 Inch-Pound
    • Motor Brush TypeBrushless
    • Power Tool TypeDriver
    • UPC Code197050014740

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

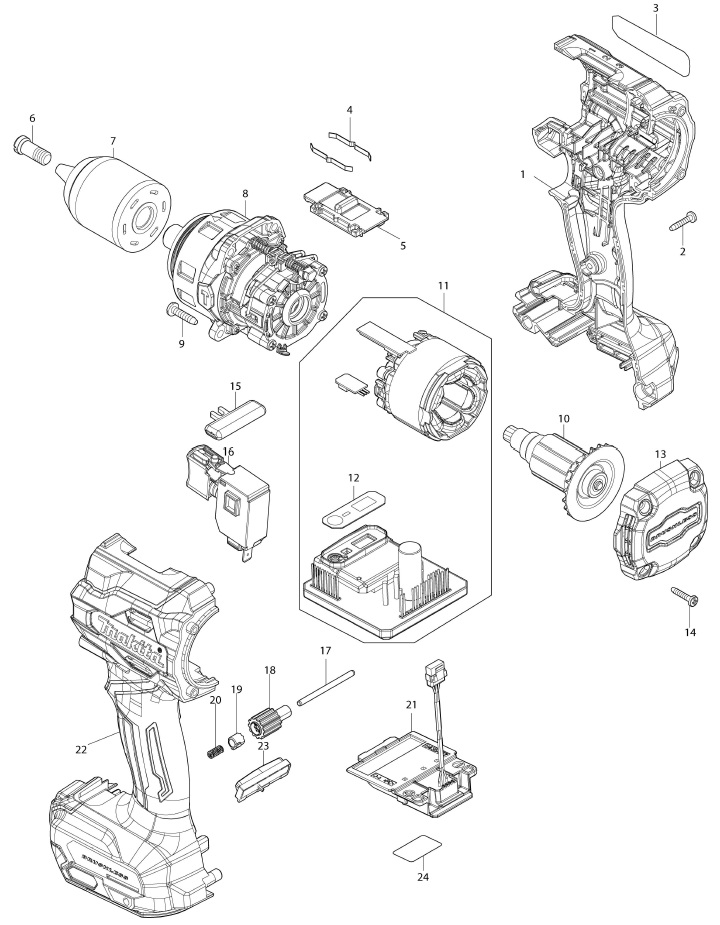

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    022
    022
    1831T8-6
    HOUSING SET
    Product #:
    Mfg #: 1831T8-6
    014
    014
    266130-9
    Binding head tapping screw 3X16
    Product #:
    Mfg #: 266130-9
    Notes:
    Qty 4
    003
    003
    8152B2-7
    GPH03 NAME PLATE
    Product #:
    Mfg #: 8152B2-7
    004
    004
    232220-0
    Leaf spring
    Product #:
    Mfg #: 232220-0
    Notes:
    Qty 2
    005
    005
    162E02-5
    SPEED CHANGE LEVER COMPLETE
    Product #:
    Mfg #: 162E02-5
    006
    006
    265E30-0
    COUNTERSUNK HEAD SCREW M8
    Product #:
    Mfg #: 265E30-0
    007
    007
    763269-4
    KEYLESS DRILL CHUCK 13
    Product #:
    Mfg #: 763269-4
    008
    008
    122J18-2
    GEAR ASSEMBLY
    Product #:
    Mfg #: 122J18-2
    009
    009
    266326-2
    Binding head tapping screw 4X18
    Product #:
    Mfg #: 266326-2
    Notes:
    Qty 4
    010
    010
    619907-5
    ROTOR
    Product #:
    Mfg #: 619907-5
    011
    011
    529D23-8
    STATOR ASS'Y 36V
    Product #:
    Mfg #: 529D23-8
    012
    012
    8091G8-4
    SWITCH LABEL
    Product #:
    Mfg #: 8091G8-4
    013
    013
    4132U0-4
    REAR COVER
    Product #:
    Mfg #: 4132U0-4
    015
    015
    419041-9
    F/R change lever
    Product #:
    Mfg #: 419041-9
    016
    016
    650710-5
    Switch C3JW-4B
    Product #:
    Mfg #: 650710-5
