Little Giant
P-AAA Series Oil Filled Submersible Pump with 6' Cord and 4.6' Shut-Off 115V
Product #:LGP-10-6716
Mfg. Part #:523003
Little Giant 523003 P-AAA Series Oil Filled Submersible Pump with 6' Cord and 4.6' Shut-Off 115V
Little Giant
P-AAA Series Oil Filled Submersible Pump with 6' Cord and 4.6' Shut-Off 115V
Product #:LGP-10-6716
Mfg. Part #:523003
Description
The Small Submersible Oil Filled Pump has corrosion resistant nylon housing. It's used for commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 120 GPH pump features a 1/4" MNPT and screened inlet.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandLittle Giant
- Frequency Rating (Hz)60
- Shipping Dimensions6 x 6 x 4.5 inch
- MaterialGlass, Nylon
- Voltage115V
- Amps High Speed0.5
- Amps Low Speed0.5
- Cord Length6 foot
- Each Product Weight2.7 pound
- Master Carton Quantity6
- Max Liquid Temperature120 degrees Fahrenheit
- Max Working Pressure2 pounds per square inch
- Minimum Sell Quantity1
- Power Rating30 watt
- Shut Off4.6 foot
- UPC Code0010121230033
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

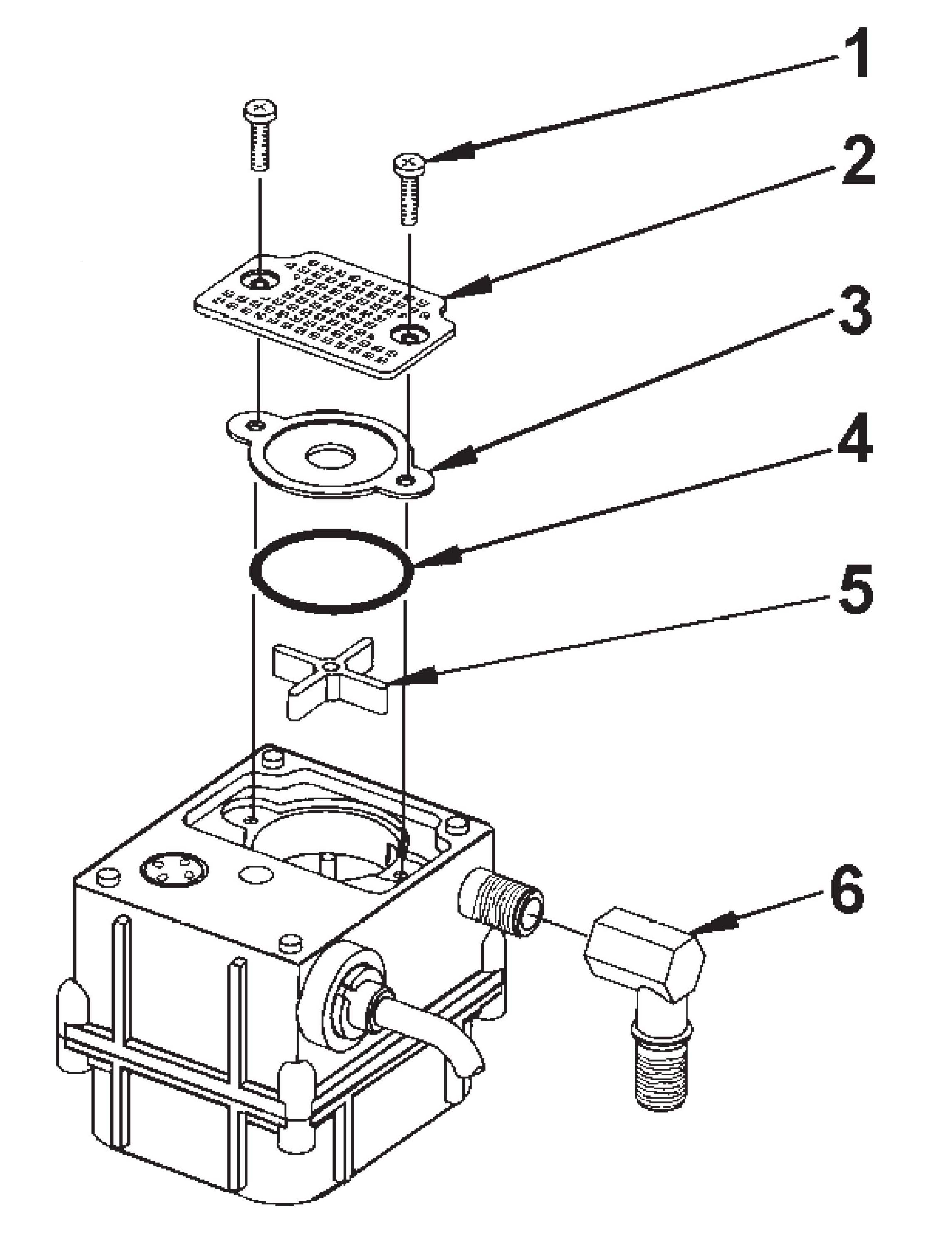

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
902406
Screw- 8-32 x 5/8
Product #:
Mfg #: 902406
2
2
123145
Screen
Product #:
Mfg #: 123145
4
4
942020
O-Ring
Product #:
Mfg #: 942020
5
5
123030
Impeller
Product #:
Mfg #: 123030
6
6
943076
Elbow
Product #:
Mfg #: 943076
