Nema Scala Pump 1HP 115V 60Hz

Product #:CAP-10-1001

Mfg. Part #:GFSCALA1555-1


Grundfos GFSCALA1555-1 Nema Scala Pump 1HP 115V 60Hz

Grundfos

Nema Scala Pump 1HP 115V 60Hz

Product #:CAP-10-1001

Mfg. Part #:GFSCALA1555-1

EA

Description

The Grundfos SCALA1 5-55 is an all-in-one, self-priming water pressure booster designed for domestic and light commercial applications. Featuring smart Bluetooth connectivity, an ultra-quiet design, and built-in dry-run protection, it delivers reliable, instant water pressure on demand.

Documents

Feature Bullets

  • All-in-One Compact Design: Integrates pump, motor, tank, sensor, and non-return valve to eliminate complex plumbing layouts and save installation space.
  • Smart Bluetooth Connectivity: Links to the free Grundfos GO app for real-time monitoring, 24/7 scheduling, and effortless remote customization.
  • Self-Priming Capability: Easily lifts water from depths up to 26 feet in under 5 minutes, making it ideal for variable source water supplies.
  • Intelligent Protection: Advanced built-in safeguards protect against dry running, overheating, and system short cycling caused by minor leaks.

    • Branch Availability

    content loaded

    Specifications

    • BrandGrundfos
    • Amperage5.25 amperage
    • Shipping Dimensions22 x 12 x 16 inch
    • ApplicationPool
    • ColorBlack
    • Frequency Rating (Hz)60
    • Horsepower1 horse power
    • MaterialComposite
    • Standards ApprovalscULus Certified, CSA Certified
    • Voltage115V
    • Wattage1250 watt
    • ChannelConstruction Channel
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Cord Length4.92 foot
    • Cord TypeNEMA
    • Design Flow Rate22 gal/min
    • Discharge Size1 inch
    • Discharge Size FITNPT
    • Each Product Weight32 pound
    • Flow Rate Max32 gal/min
    • Flow Rate Min0.4 gal/min
    • Frame MaterialComposite
    • Max Liquid Temperature113 degrees Fahrenheit
    • Max Working Pressure116.03 pounds per square inch
    • Minimum Sell Quantity1
    • Motor Speed1-Speed
    • Pallet Quantity14
    • Suction Size1 inch
    • Suction Size FITNPT
    • Temperature Rating Max113 degrees Fahrenheit
    • Temperature Rating Min32 degrees Fahrenheit
    • Thrust HP1
    • Warranty - General30 months
    • UPC Code5713832222070

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

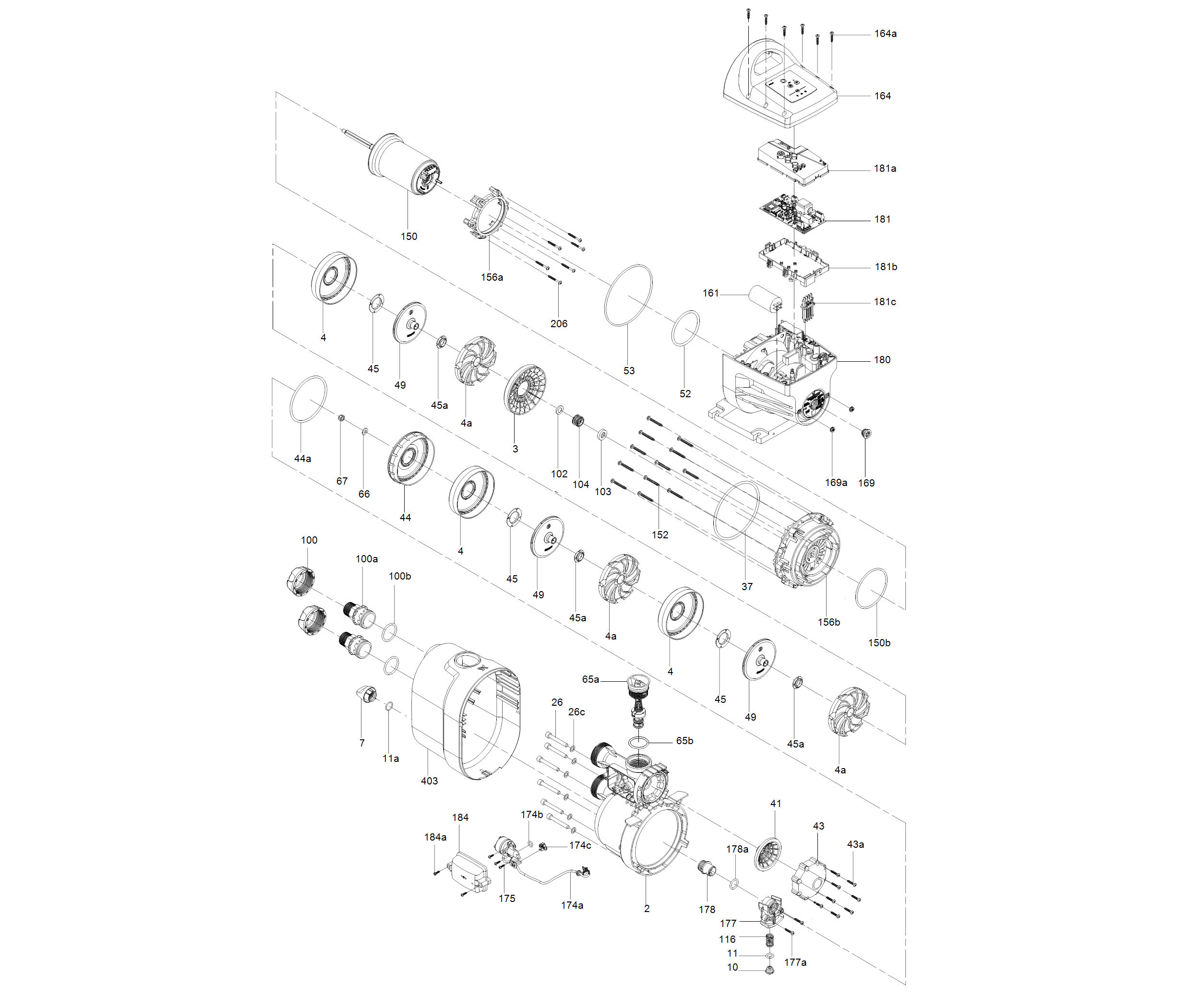

    Parts & Schematics


    Wholegoods

    There are no wholegoods available.
