Frank Wall Enterprises KTH-80X Trash Pump; 8 HP, 3 Inch
Description
Koshin Trash Pumps are the real workhorses on any job site whether its pumping muddy water and sludge with solids ups to 1 1/4" or emptying a swimming pool. The KTH-80X pumps over 21,000 GPH––now that will empty any size pool in a short time. This rugged pump has been the favorite of contractors for many years.
Documents
Branch Availability
content loaded
Specifications
- BrandFrank Wall
- Horsepower8 horse power
- Each Product Weight128 pound
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1

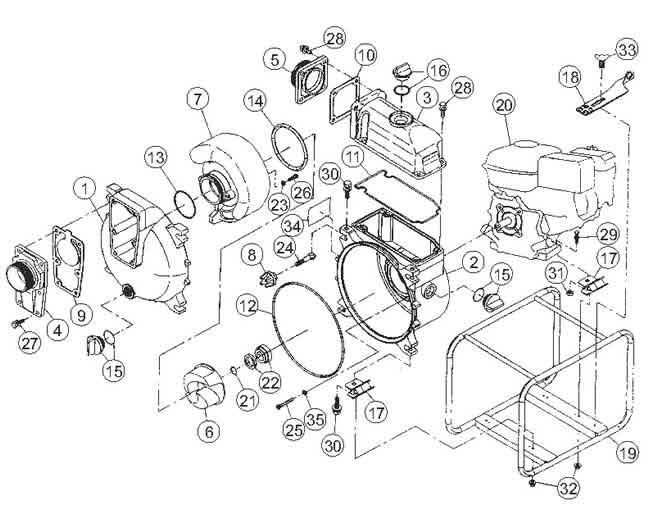

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
01
01
0115545
FRONT COVER
Product #:
Mfg #: 0115545
02
02
0115546
PUMP CASING
Product #:
Mfg #: 0115546
03
03
0115547
DELIVERY HOUSING
Product #:
Mfg #: 0115547
04
04
0111360
SUCTION FLANGE
Product #:
Mfg #: 0111360
05
05
0115837
DELIVERY FLANGE
Product #:
Mfg #: 0115837
06
06
0115558
IMPELLER
Product #:
Mfg #: 0115558
07
07
0115559
VOLUTE
Product #:
Mfg #: 0115559
08
08
0115590
KNOB
Product #:
Mfg #: 0115590
09
09
0115692
CHECK VALVE
Product #:
Mfg #: 0115692
10
10
0110584
DEL. FLANGE GASKET
Product #:
Mfg #: 0110584
11
11
0115548
HEAD GASKET
Product #:
Mfg #: 0115548
12
12
0115579
FRONT COVER GASKET
Product #:
Mfg #: 0115579
13
13
0115676
O RING
Product #:
Mfg #: 0115676
14
14
0115578
CASING GASKET
Product #:
Mfg #: 0115578
15
15
0118079
25A PLUG SET
Product #:
Mfg #: 0118079
Wholegoods
There are no wholegoods available.
