Aqua Creek
White/Blue Revolution Lift XL™ Pool without Anchor
Product #:ACP-42-4163
Mfg. Part #:F-REVXL
Aqua Creek F-REVXL White/Blue Revolution Lift XL™ Pool without Anchor 500 lb Capacity
Aqua Creek
White/Blue Revolution Lift XL™ Pool without Anchor
Product #:ACP-42-4163
Mfg. Part #:F-REVXL
EA
Description
The new and improved Revolution XL™ Pool Lift is now more sleek and versatile than ever before! Featuring the same robust 500 lb weight capacity as it’s predecessor, now with increased water draft and anchor setback, this lift provides access to a wider variety of users and provides additional clearance for short pool walls and curbs. The Revolution XL™ is designed to be self-operated by the individual user. With an easy to use 4 button handset, the user is able to control all movement and enjoy a fully independent aquatic experience.
Documents
Branch Availability
content loaded
Specifications
- BrandAqua Creek
- ApplicationPool
- Shipping Dimensions44 x 34 x 78 inch
- ColorWhite, Blue
- MaterialStainless Steel
- ChannelNone
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight355 pound
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- Warranty - General5 years
- UPC Code811628027054
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

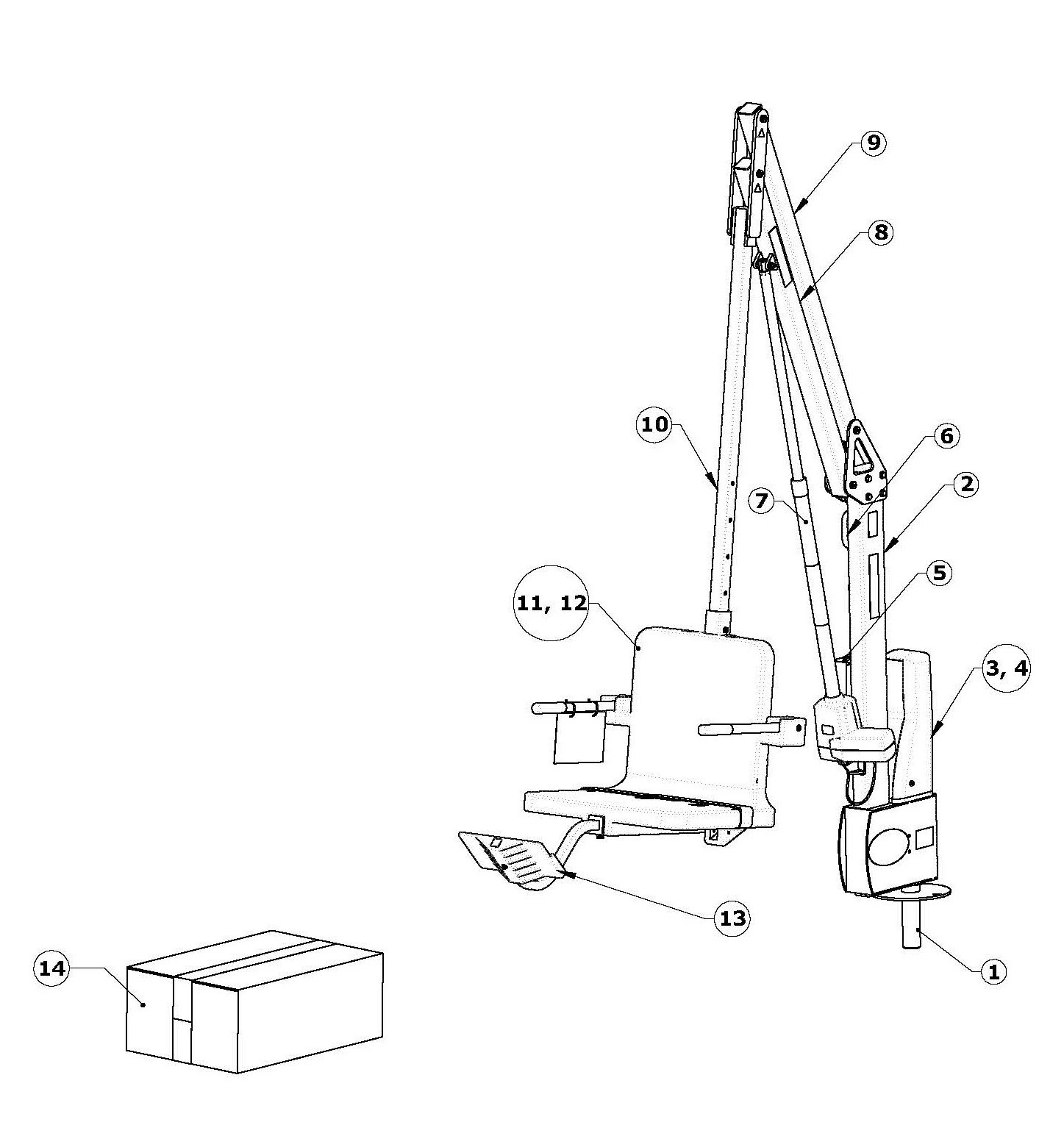

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
INV03491
ASSEMBLY - ANCHOR SPINDLE - 1.90" DIA. SQ DRIVE
Product #:
Mfg #: INV03491
2
2
INV02753
ASSEMBLY - REV SERIES MAIN FRAME
Product #:
Mfg #: INV02753
3
3
INV02755
ASSEMBLY - MOTOR MOUNT
Product #:
Mfg #: INV02755
4
4
INV03502
ASSEMBLY - MOTOR COVER - BLUE
Product #:
Mfg #: INV03502
5
5
INV03471
ASSEMBLY - LINAK CONTROL BOX
Product #:
Mfg #: INV03471
6
6
INV01845
REMOTE - 4 BUTTON LINAK
Product #:
Mfg #: INV01845
7
7
INV03093
ACTUATOR KIT - 600MM - LINAK
Product #:
Mfg #: INV03093
8
8
INV02954
ASSEMBLY - LIFTING ARM - 42.00"
Product #:
Mfg #: INV02954
9
9
INV02955
ASSEMBLY - CONTROL ARM - 42.00"
Product #:
Mfg #: INV02955
10
10
INV03126
ASSEMBLY - SEAT POLE - 63.00"
Product #:
Mfg #: INV03126
11
11
INV02756
ASSEMBLY - SEAT CRADLE
Product #:
Mfg #: INV02756
12
12
INV01505
ASSEMBLY - SEAT 22.00" - BLUE
Product #:
Mfg #: INV01505
13
13
INV01903
ACCESSORY - FOOTREST - BLUE
Product #:
Mfg #: INV01903
14
14
INV03286
STOCK BOX - LINAK
Product #:
Mfg #: INV03286
15
15
INV01053
SEAT BELT EXTENSION - 15-IN LONG
Product #:
Mfg #: INV01053
