Hayward

18" White Square High Flow Cover Inner and Outer Frame

Product #:HAY-25-1913

Mfg. Part #:WG1033HF2PAK2

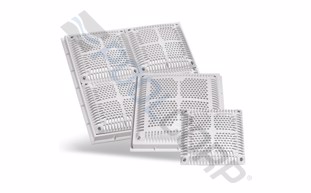

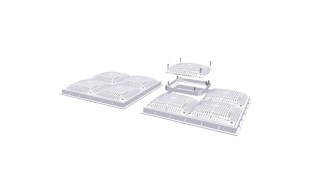

Hayward 1K-WG1033HF2PAK 18" White Square High Flow Cover Inner and Outer Frame

Hayward

18" White Square High Flow Cover Inner and Outer Frame

Product #:HAY-25-1913

Mfg. Part #:WG1033HF2PAK2

Description

Hayward's High Flow suction outlets have some of the industry's highest approved flow rates for use in new construction or as a replacement cover. They also retrofit into all existing Hayward frames. VBG compliant and tested to ANSI/APSP-16 standards.

Documents

Feature Bullets

  • ASME approved flow rates
  • Retrofits to all Hayward existing frames
  • 7-Years lifetime Warranty
  • 1-Year limited warranty
  • All Hayward drain covers can be used as a single replacement cover when installed on the same suction line as an EcoStar(R) SVRS or a Stratum(R) SVRS

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ColorWhite
    • Shipping Dimensions16.27 x 11.51 x 16.67 inch
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Cover Open Area124.1 square inch
    • Each Product Weight15.05 pound
    • Floor Flow Rate Measure A812 gal/min
    • For Use WithSuction Outlet Drains
    • For Use WithSuction Outlet Drains
    • Master Carton Quantity2
    • Minimum Sell Quantity1
    • Pallet Quantity24
    • Wall Flow Rate Measure A732 gal/min
    • UPC Code0610377144698

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    There are no parts or schematics available.
