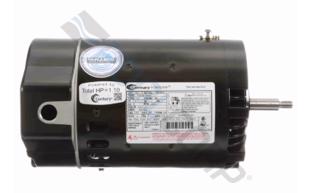

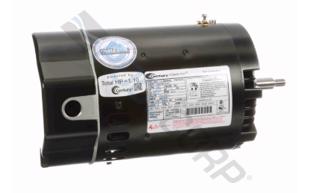

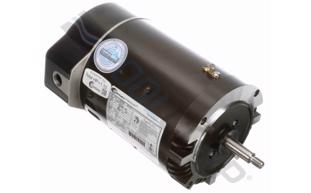

Century® Centurion® Pro HBC110 Pool and Spa Pump Motor; 1.1HP, 115/230V, 56FR, C-Face
Description
This C-Face Centurion Pro Pool Pump Motor 1.1HP 115/230V is a replacement part that can be relied upon when it matters the most. This motor is made from high-quality parts and materials for long-term performance.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50
- Shipping Dimensions14.17 x 9.13 x 9.13 inch
- Amps High Speed12
- Amps Low Speed6
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight25 pound
- Frequency Rating (Hz)60
- Horsepower1.1 horse power
- Insulation ClassF
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Thermal ProtectionNone
- Pallet Quantity52
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1
- Shaft Design7/16 Threaded
- Shaft Diameter3625 inch
- Shaft Material303 Stainless Steel
- Voltage115V, 230V
- ApplicationPool
- Commercial, Residential, or ProfessionalResidential
- Frame MaterialRolled Steel
- UPC Code786674071460
