Waterway
Hi-Flo II Above Ground Pool Pump with 3' Twist-Lock Cord .75HP
Product #:WWP-10-1803
Mfg. Part #:SD-07-1-T
- This product is obsolete.
- The superceded product was not found.
Waterway Hi-Flo II SD-07-1-T Above Ground Pool Pump with 3' Twist-Lock Cord .75HP
Waterway
Hi-Flo II Above Ground Pool Pump with 3' Twist-Lock Cord .75HP
Product #:WWP-10-1803
Mfg. Part #:SD-07-1-T
EA
Description
Waterway Hi-Flo II SD-07-1-T Above Ground Pool Pump with 3' Twist-Lock Cord .75HP. The Hi-Flo II Above Ground pump was designed for superior performance. The Hi-Flo II pump features high flow rate performance for faster filtering cycles. This pump is ideal for new installations or as a replacement pump.
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationAbove Ground, Pool
- Shipping Dimensions23.63 x 6.38 x 9.13 inch
- ChannelNone
- Cord Length3 foot
- Cord TypeTwist-Lock
- Each Product Weight23.46 pound
- Horsepower0.75 horse power
- Minimum Sell Quantity1
- UPC Code806105653857
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

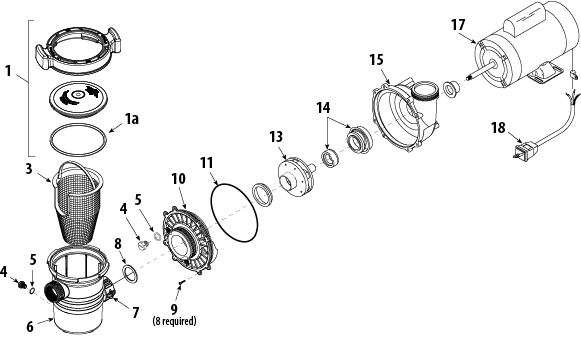

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
319-4100
Lid & Nut & O-ring - 6" Trap
Product #:
Mfg #: 319-4100
1a
1a
1a
1a
O-318-9
SPG-601-5516
Product #: SPG-601-5516
Mfg #: O-318-9
1a
1a
1a
350013
PAC-101-3148
Pump Trap Lid O-Ring #2-436
Product #: PAC-101-3148
Mfg #: 350013
1a
1a
352600
PAC-101-3059
Product #: PAC-101-3059
Mfg #: 352600
3
3
319-3230B
6" Trap Basket Assembly with Handle
Product #:
Mfg #: 319-3230B
4
4
715-4020B
3/8" Quarter Slot Drain Plug
Product #:
Mfg #: 715-4020B
5
5
805-0112B
O-Ring - Drain Plug
Product #:
Mfg #: 805-0112B
6
6
319-2170B
6" Trap Body - 1 1/2" FPT/ 1 1/2" Buttress x 2" Union Flange
Product #:
Mfg #: 319-2170B
7
7
400-5161B
2" Split Nut with Screw
Product #:
Mfg #: 400-5161B
8
8
711-4010B
2" Union Gasket
Product #:
Mfg #: 711-4010B
9
9
819-1110B
Screw (8 required)
Product #:
Mfg #: 819-1110B
10
10
311-2170B
2" Intake Side Discharge Faceplate
Product #:
Mfg #: 311-2170B
