National Diversified Sales

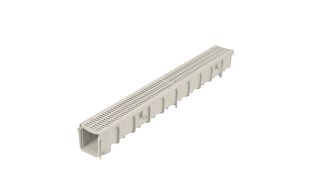

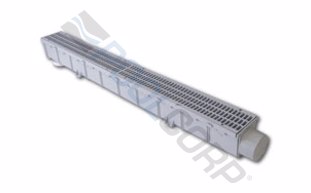

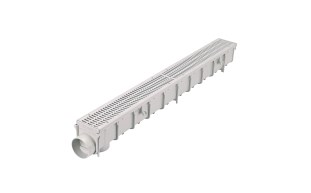

3" x 2-1/16" x 39-3/8" Light Gray Pro Series Channel Drain Kit

Product #:NDS-58-1157

Mfg. Part #:764

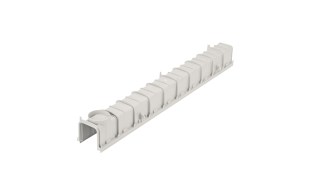

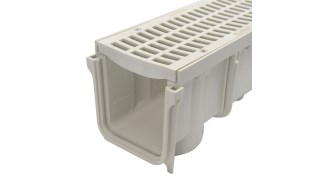

NDS 764 3" x 2-1/16" x 39-3/8" Light Gray Pro Series Channel Drain Kit

National Diversified Sales

3" x 2-1/16" x 39-3/8" Light Gray Pro Series Channel Drain Kit

Product #:NDS-58-1157

Mfg. Part #:764

Description

NDS 764 3" x 2-1/16" x 39-3/8" Light Gray Pro Series Channel Drain Kit is ideal for draining moderate water flows from surfaces such as driveways, concrete & paver patios, courtyards, & walkways. Kit includes a 3 in. Pro Series Channel Drain made of polypropylene (PP) with integrated bottom outlet, 2 high-density polyethylene (HDPE) channel drain grates, end cap/outlet, and end cap. The modular design with interlocking joints make connections quick & easy, and channels can be cut to lengths as short as 4 in. using the saw guide found between the rib and stabilizing rib. Bottom outlet connects to 3 in. sewer and drain fittings and end outlet connects to 3 in. sewer and drain fittings. Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it.

Documents

No documents available

Feature Bullets

  • Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
  • 3 in. Pro Series Channel Drain system collects moderate water flows from driveways, concrete & paver patios, courtyards, and walkways, and directs it to drain pipes for proper release downstream

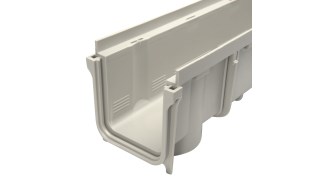

  • 3 in. Pro Series Channel Drain is 4-1/8 in. deep; features a modular design with interlocking joints for a secure channel-to-channel connection—no couplings required; easy to cut to size in 4 in. increments using saw guide

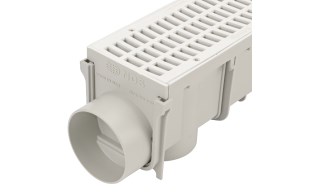

  • Channel section includes a built-in bottom knock-out outlet which connects to 3 in. sewer and drain fittings
  • Channel-to-channel clips reduce motion during installation; rebar clips instead of lower mount clips make installation easier
  • Thick channel walls and extended side ribs provide increased strength and durability
  • Lay-flat design stabilizes channel during installation
  • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationIrrigation
    • ColorLight Gray
    • Cover Open Area23.6 square inch
    • Each Product Weight4.7 pound
    • Flow Rate72 gal/min
    • Grate ColorLight Gray
    • Grate ShapeRectangle

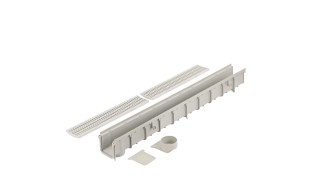

    • Includes3 in. Pro Series Channel Drain kit includes channel drain, two channel grates, end cap/outlet, and end cap
    • Master Carton Quantity10
    • MaterialPolyethylene (plastic), Polypropylene or polypropene
    • Minimum Sell Quantity1
    • Pallet Quantity80
    • Pipe Diameter3 inch
    • Product Depth39.375 inch
    • Product Height3 inch
    • Product Width2.0625 inch
    • Standards ApprovalsADA Compliant
    • UPC Code052063076409
