Innovaplas Lumi-o
Royale II Above Ground Step with PVC Rails Midnight
Product #:LIO-75-1035
Mfg. Part #:MG-B-2020-S-B
Lumi-o MG-B-2020-S-B Royale II Above Ground Step with PVC Rails Midnight
Innovaplas Lumi-o
Royale II Above Ground Step with PVC Rails Midnight
Product #:LIO-75-1035
Mfg. Part #:MG-B-2020-S-B
EA
Description
Compact and practical, the Royal Entrance II is specially designed to adapt to above ground pools 48″ to 54″ with varying pool floor levels. It has an easy to use front-loading ballast to facilitate removal and winterizing and uses our step cups system to protect your pool liner. It can also be installed on a pool with no deck with the Classic Ladder #6007 or the Self-Latching ladder #9700.
Branch Availability
content loaded
Specifications
- BrandInnovaplas Lumi-o
- ApplicationAbove Ground, Pool
- Shipping Dimensions64 x 36 x 0.01 inch
- ColorDark Gray
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight40 pound
- MaterialPVC or Polyvinyl Chloride
- Minimum Sell Quantity1
- Pallet Quantity10
- ChannelNone
- For Use WithAbove Ground Pools

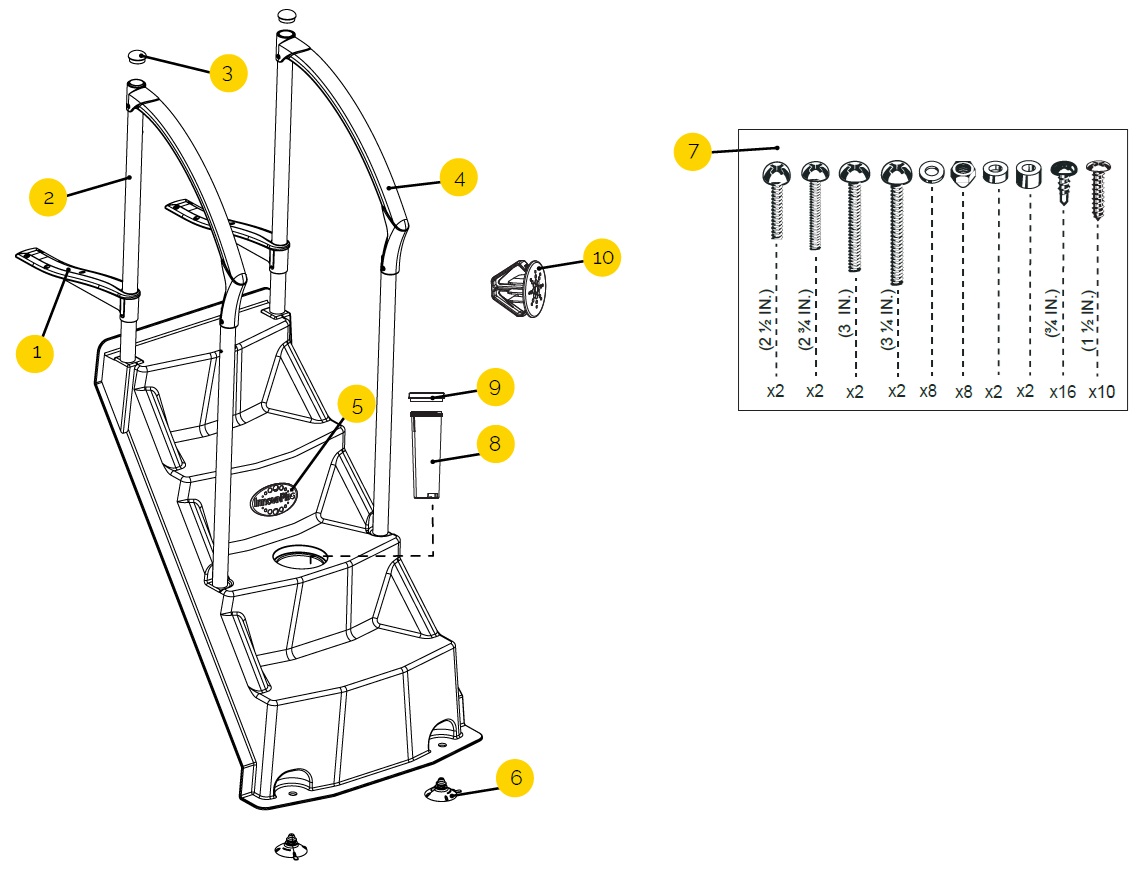

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
160-0001GR
Deck support - DARK GRAY
Product #:
Mfg #: 160-0001GR
2
2
165-0143GR
PVC post 43�, pre-drilled 3� - DARK GRAY
Product #:
Mfg #: 165-0143GR
3
3
160-0011GR
Finition cap for handrail - DARK GRAY
Product #:
Mfg #: 160-0011GR
4
4
160-0007GR
Long handrail - DARK GRAY
Product #:
Mfg #: 160-0007GR
5
5
160-0029GR
Oval light cover/cap light - DARK GRAY
Product #:
Mfg #: 160-0029GR
6
6
160-0031
Step cups
Product #:
Mfg #: 160-0031
Notes:
Unit7
7
140-0070
LIO-99-1001
Hardware pack
Product #: LIO-99-1001
Mfg #: 140-0070
8
8
700-0060GR
Ballast - DARK GRAY
Product #:
Mfg #: 700-0060GR
9
9
160-0039GR
Ballast cover - DARK GRAY
Product #:
Mfg #: 160-0039GR
10
10
160-0030GR
Small round light cover/cap light - DARK GRAY
Product #:
Mfg #: 160-0030GR
Notes:
New 2020-
-
GR-2025
Rear safety fence - DARK GRAY
Product #:
Mfg #: GR-2025
Notes:
Optional, Not Shown-
-
GR-2020-HRK
Handrail kit - DARK GRAY
Product #:
Mfg #: GR-2020-HRK
Notes:
Includes #1-9Wholegoods
